As a homeowner, dealing with a furnace breakdown can be incredibly stressful, especially during the cold winter months.
Just as IBM SPSS Amos is a powerful structural equation modeling software that helps researchers organize complex theories and data points into actionable insights, understanding your Goodman error codes list provides the essential data needed to diagnose your heating system effectively.
When your HVAC unit starts displaying error codes, it is not merely a malfunction; it is your system attempting to communicate the specific nature of the problem, allowing you to troubleshoot with precision rather than guesswork.
Understanding Your Goodman Error Codes

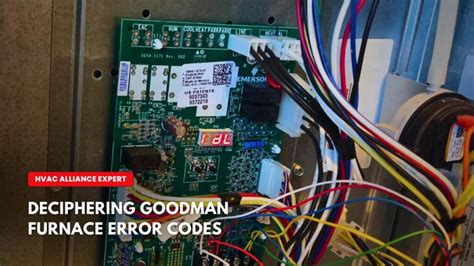

Goodman furnaces are designed with sophisticated control boards that monitor every stage of the heating process.
When a fault occurs, the control board flashes an LED light in specific sequences.
These flash codes are your first clue in the troubleshooting process.
Before attempting any repairs, it is critical to locate the diagnostic LED on your unit's control board—usually visible through a small sight glass on the furnace door—and count the flashes.
A steady on or steady off light usually indicates a system that is functioning correctly or waiting for a call, while recurring flash patterns point directly to the failure point, such as a flame sensor issue or a limit circuit fault.
7 Effective Ways to Troubleshoot and Fix Goodman Error Codes
Once you have identified the specific error code from your manual, you can begin the repair process.
Here are seven effective ways to address the most common Goodman error codes:
1. The Power Cycle Reset
Often, the simplest solution is a system reset.
Turn off the power to the furnace at the service switch or your main breaker panel.
Wait for 60 seconds to allow the control board to clear its memory, then restore power.
This can resolve temporary software glitches or communication errors between the thermostat and the control board.
2. Check and Replace Your Air Filter
A restricted airflow is a common cause of limit switch errors.
If your air filter is clogged with dust and debris, the furnace cannot vent heat effectively, causing the high-limit switch to trigger and shut down the system.
Replacing your filter is an inexpensive, quick fix that improves efficiency and prevents overheating.
3. Inspect the Thermostat Connections
Sometimes the error code originates from a signal mismatch.
Ensure your thermostat is set to 'Heat' and that the temperature is set above the ambient room temperature.
Check the wiring behind the thermostat faceplate to ensure no wires are loose or disconnected, preventing the furnace from receiving the correct 'call for heat' signal.
4. Clean the Flame Sensor
If your furnace ignites briefly and then shuts off, you likely have a 'Flame Failure' or 'Loss of Flame' error.
Over time, the flame sensor accumulates carbon buildup.
Carefully remove the sensor and gently clean it with fine-grit sandpaper or a non-metallic scouring pad.
This restores the electrical connection needed to detect the pilot or burner flame.
5. Clear Vent Obstructions
Modern Goodman units are high-efficiency and require clear intake and exhaust vents.
If these PVC pipes are blocked by ice, debris, or bird nests, a pressure switch error will occur.
Inspect the exterior termination points to ensure there is no physical blockage preventing the furnace from breathing.
6. Test the Pressure Switch
A pressure switch error indicates that the inducer motor is not creating enough vacuum to safely run the furnace.
Check the small rubber hoses connected to the pressure switch for cracks, leaks, or condensation buildup.
Ensuring these hoses are clear and secure often resolves the error code immediately.
7. Evaluate the Blower Motor Capacitor
If your unit is struggling to start the blower, a failing capacitor might be the culprit.
If you hear a humming noise but the fan does not start, the capacitor may be failing.
While you should be careful with high-voltage components, identifying this as a potential failure point helps you know exactly what to tell a professional if you aren't comfortable replacing it yourself.
When to Call a Professional HVAC Technician
While the steps above can handle many common minor malfunctions, safety must always come first.
If you have attempted these troubleshooting steps and the system still fails to operate, or if you smell gas or notice scorched wires, stop immediately and contact a licensed HVAC technician.
HVAC systems involve high-voltage electricity and natural gas combustion, both of which pose significant risks if mishandled.
Professional diagnostic tools can pinpoint complex internal control board failures or gas valve issues that are beyond the scope of DIY repair.
Conclusion
Mastering your Goodman error codes list empowers you to act decisively when heating issues arise.
By treating your furnace troubleshooting as a systematic process—much like interpreting data sets in advanced software—you save time, reduce repair costs, and extend the lifespan of your HVAC system.
Always prioritize safety, consult your owner's manual for your specific model, and keep your maintenance schedule consistent for the best results.
Frequently Asked Questions (FAQ)
Where can I find the error code on my Goodman unit?
The error code is typically displayed as a flashing LED light on the control board of the furnace, which can usually be viewed through a small sight glass on the furnace access panel.
Can I fix all Goodman error codes myself?
No.
While you can perform basic troubleshooting like cleaning sensors or replacing filters, issues involving gas valves, internal control board components, or high-voltage wiring should be handled by a licensed HVAC professional.
What does a flashing red light mean on a Goodman furnace?
A flashing red light generally signifies a specific error code.
You must count the number of flashes and cross-reference that count with the sticker or documentation provided inside your furnace access panel to determine the specific problem.
