A Whirlpool stove is a cornerstone of the modern kitchen, providing the reliability and performance needed for daily meal preparation.
However, encountering a digital error code on your display panel can be incredibly frustrating, especially when you are in the middle of cooking.
While these codes might look intimidating, many Whirlpool stove error codes are designed to protect the unit and can often be resolved with some basic troubleshooting.
Learning how to fix Whirlpool stove error codes step by step will not only save you money on service calls but also extend the lifespan of your appliance.
Understanding Why Whirlpool Stoves Display Error Codes
Before jumping into repairs, it is important to understand that your stove is essentially a computer.
The electronic control board monitors various sensors, circuits, and heating elements.
When it detects a discrepancy—such as an open circuit, a short, or a temperature reading that doesn't make sense—it triggers an error code to prevent further damage.

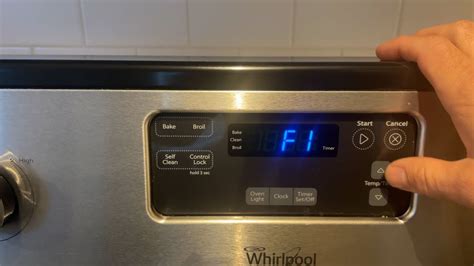

Common codes like F1, F2, F3, or F5 are typical warnings.
While the specific meaning can vary depending on the model, they generally point toward issues with the temperature sensor, the keypad, or the main control board.
Step 1: The Power Cycle Reset
The very first step in how to fix Whirlpool stove error codes is the simplest: a hard reset.
In many instances, the control board may experience a minor electronic glitch, similar to a computer freezing.
To perform a hard reset, unplug the stove from the wall outlet or locate your home's circuit breaker panel and switch off the breaker dedicated to the stove.
Leave the power off for at least 60 seconds.
This allows the capacitors in the control board to fully discharge and clear the memory.
After the minute has passed, restore the power and observe if the error code disappears.
If the error code was just a transient software hiccup, this step often resolves the issue instantly.
Step 2: Inspecting the Temperature Sensor
If the error code persists after a reset, the next most likely culprit is the oven temperature sensor.
This small device inside the oven cavity measures the heat and sends signals back to the control board.
If the sensor is loose, damaged, or coated in grease, it can report inaccurate data, triggering an error.
Visually inspect the sensor located on the back wall of the oven.
Ensure it is not touching the oven wall or element.
Using a multimeter, you can check the resistance of the sensor.
A typical oven sensor should read approximately 1080 ohms at room temperature.
If the reading is significantly off or if there is no continuity, the sensor is faulty and must be replaced.
Step 3: Checking the Control Board and Keypad
If the power cycle and sensor checks do not solve the problem, the issue may lie deeper within the electronic control unit.
An F2 or F3 error often indicates a keypad or control board communication failure.
If your stove has a membrane-style touchpad, it is susceptible to wear and tear from heat and moisture over time.
Inspect the wiring connections between the control board and the display panel to ensure nothing has wiggled loose.
Sometimes, simply unplugging and replugging the ribbon cable connectors can clear corrosion and restore the signal.
However, if the control board itself is fried due to a power surge, you will likely need to replace the entire electronic control assembly.
Safety Precautions During Maintenance
Working on any major appliance carries inherent risks.
Always prioritize safety when attempting to fix Whirlpool stove error codes.
Never perform maintenance while the stove is plugged into a power source, and ensure the oven has completely cooled down before inspecting any internal components.
If you are uncomfortable handling electrical components or if you find damage to the main power lines or internal wiring, do not attempt a DIY fix.
It is always better to consult the user manual specific to your model number or contact a certified professional technician.
Handling live electricity or internal circuitry without proper training can result in serious injury or fire hazards.
Conclusion
Troubleshooting your stove doesn't have to be a daunting task.
By following these methodical steps—starting with a simple power cycle, inspecting the temperature sensor, and evaluating the control connections—you can often resolve common issues on your own.
Most Whirlpool appliances are built for longevity, and identifying how to fix Whirlpool stove error codes step by step empowers you to maintain your kitchen's efficiency without unnecessary downtime.
Regular maintenance, such as keeping the oven sensor clean and ensuring the unit is properly ventilated, will go a long way in preventing these error codes from appearing in the future.
Frequently Asked Questions (FAQ)
Can I fix Whirlpool stove errors without a professional?
Yes, many minor errors can be resolved by performing a power cycle reset or by cleaning and checking the temperature sensor connections.
What does the F1 code usually mean on a Whirlpool stove?
An F1 code typically indicates a failure within the electronic control board or the temperature sensor circuit.
How do I reset my Whirlpool oven?
To reset your Whirlpool oven, turn off the circuit breaker or unplug the unit for at least 60 seconds to allow the control board to discharge.
When should I call a professional technician?
You should call a professional if you are uncomfortable working with electronics, if you detect a burning smell, or if the error code remains after replacing common parts like the sensor.
