There is nothing quite as frustrating as starting a load of laundry, only to have your day interrupted by a blinking error code on your washing machine display.
If you own a Whirlpool washer, you may have encountered the dreaded F5 E3 error code.
This particular code often stops the machine dead in its tracks, leaving your clothes soaking in water and your schedule in disarray.
Understanding what this error means is the first step toward fixing it and avoiding an unnecessary service call.

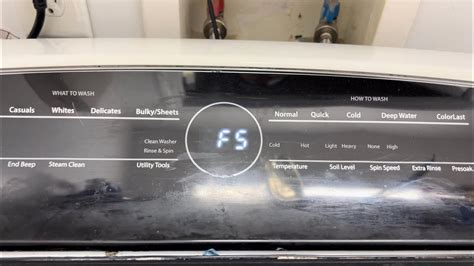

Understanding the Whirlpool F5 E3 Error Code

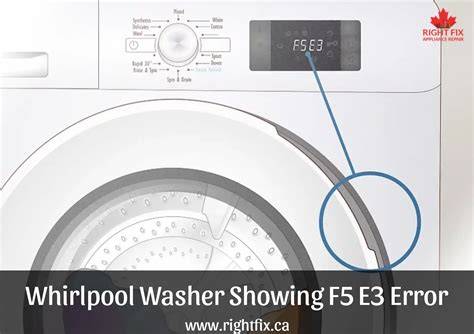

The F5 E3 error code on a Whirlpool washer is a communication signal indicating a failure in the door lock or lid lock system.
Specifically, it means the main control unit (the brain of the washer) cannot confirm the status of the door lock mechanism.
It essentially believes the door or lid is either not locking when it should, or is not unlocking when it should, causing the cycle to pause or fail to start entirely.
This is a safety feature; the washer will not spin or agitate if it cannot verify that the lid is securely locked to prevent potential injury.
Common Causes for the F5 E3 Error
Before you rush to replace parts, it is important to understand what might be causing the failure.
In many cases, the issue is not a broken component but rather an environmental factor.
The most common culprit is a physical obstruction.
Check to see if any small clothing items, such as socks or stray threads, are wedged in the latch mechanism.
Additionally, a build-up of detergent residue or grime can prevent the latch from engaging smoothly.
In other instances, the problem could be electrical, stemming from a loose wire connection between the door lock assembly and the main control board.
Step-by-Step Troubleshooting for the F5 E3 Code
To begin the troubleshooting process, always prioritize your safety.
First, unplug the washing machine from the wall outlet to cut off all power.
Wait at least five to ten minutes to allow the capacitors on the control board to discharge.
After the waiting period, plug the unit back in and see if the error clears.
This 'hard reset' often resolves temporary electronic glitches.
If the error persists, examine the lid or door lock area physically.
Use a flashlight to inspect the latch hook and the receiver hole.
Remove any debris you find.
If the door appears to lock manually but the machine still shows the error, the issue may lie deeper within the internal wiring or the actuator itself.
Inspecting the Door Lock Wiring
If a simple reset and cleaning do not work, you may need to inspect the wiring harness.
This step involves removing the top or front panel of your washer, depending on your specific model.
Once you have access to the internal components, locate the door lock actuator.
Check the wire connectors leading to the lock to ensure they are firmly seated and show no signs of corrosion or burning.
Sometimes, a vibration during the spin cycle can cause these connectors to wiggle loose over time.
Simply unplugging and reconnecting them can often restore connectivity and resolve the F5 E3 code.
When to Replace the Door Lock Assembly
If you have reset the machine, checked for obstructions, and verified that the wiring is intact, the door lock actuator itself may have failed mechanically or electrically.
Like any mechanical part, these actuators have a limited lifespan and can wear out after years of use.
Replacing the door lock assembly is a common repair that many homeowners can perform on their own.
You will need to order the specific part for your Whirlpool model number, remove the old assembly, and install the new one.
Ensure you consult your washer’s service manual or watch a model-specific tutorial to avoid damaging the unit's cabinet or control systems.
Preventative Maintenance Tips
Once you have resolved the F5 E3 error, you will want to prevent it from returning.
Keep the door or lid of your washer slightly ajar when not in use to allow the interior to dry out, which prevents mold and residue build-up on the locking mechanism.
Regularly wipe down the door seal and latch area with a damp cloth to remove soap scum and dirt.
By keeping this area clean, you ensure that the locking mechanism operates smoothly, significantly reducing the chances of triggering another F5 E3 communication error in the future.
Frequently Asked Questions (FAQ)
What does the F5 E3 error code mean on my Whirlpool washer?
The F5 E3 error code indicates that the washing machine's control unit cannot properly detect or communicate with the door/lid lock mechanism, preventing the machine from starting the cycle.
Can I fix the F5 E3 error without calling a technician?
Yes, in many cases, you can resolve the issue by performing a hard reset (unplugging the unit), clearing debris from the latch, or ensuring wire connections are secure.
What should I do if the error persists after I clean the latch?
If cleaning and resetting do not work, you likely have a faulty door lock actuator or a damaged wiring harness, which may require you to purchase a replacement part.
Is it safe to force the washer to start while it shows the F5 E3 code?
No.
The code is a safety precaution.
Attempting to bypass the lock could lead to the machine operating with an open lid, which poses a safety risk.
