Encountering an error code on your appliance can be a frustrating experience, especially when you have a mountain of laundry waiting to be washed. The Whirlpool washer F5 E3 error code is one of the most common issues that users face, typically indicating a problem with the door lock assembly. Much like how you might use the ncpa.cpl command on a Windows computer to manage adapters and troubleshoot network connectivity issues, diagnosing your washer requires a systematic approach to identifying where the communication or mechanical breakdown is occurring. In this guide, we will break down exactly what this error means and how you can troubleshoot it effectively.

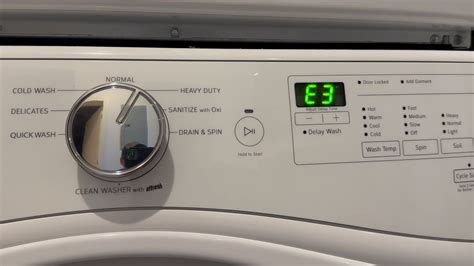

What Does the F5 E3 Error Code Actually Mean?
In the language of your Whirlpool washing machine, the F5 E3 error code signifies a 'Door Lock Error.' This code is triggered when the control board fails to receive a signal that the door is securely locked.
The washer is designed with a safety mechanism that prevents the machine from filling or spinning unless it 'knows' the door is closed and locked properly.
When this communication is interrupted or mechanically blocked, the system halts and displays the code to prevent damage or potential water leaks.

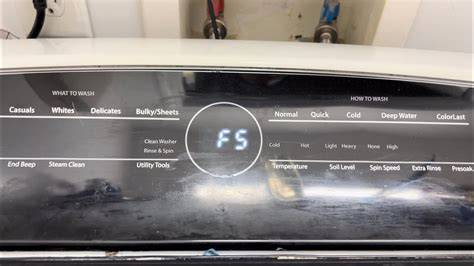

Common Causes of the F5 E3 Error
Before you jump into a complex repair, it is helpful to understand the root causes.
Often, this error is caused by a simple mechanical obstruction.
A small piece of clothing, like a sock or a stray laundry tag, might be stuck in the door latch, preventing it from clicking shut.
Another common culprit is a faulty door lock assembly.
Over time, the internal switches within the lock can wear out.
Additionally, wiring issues between the door lock and the main control board can cause this signal to be lost, or in more severe cases, the main control board itself may have failed.
Troubleshooting Step-by-Step
Start by performing a hard reset of your appliance.
Unplug the washer from the power outlet and wait for at least five minutes.
This allows the capacitors in the control board to discharge and often clears temporary software glitches.
While the power is off, inspect the door latch area carefully.
Look for debris, loose change, or small items that might be preventing the latch from fully engaging.
Use a flashlight to check the female part of the latch on the frame and the male hook on the door itself.
If the door appears clear, the next step involves checking the door lock assembly.
You may need to remove the top panel or front panel of the washer to access the wiring harness connected to the lock.
Inspect the wires for signs of burning, fraying, or loose connections.
If the wiring looks intact, you might need to test the door lock switch using a multimeter for continuity.
If there is no continuity when the latch is engaged, the lock mechanism is likely defective and will need to be replaced.
When to Call a Professional
If you have performed a hard reset, cleared all debris from the latch, and inspected the visible wiring, but the F5 E3 error persists, the issue might be internal to the main control board or a deeper mechanical failure.
Electrical troubleshooting involving printed circuit boards (PCBs) requires specialized knowledge and safety precautions.
If you are not comfortable handling high-voltage components or using a multimeter to test internal circuits, it is strongly recommended to call a certified appliance technician to avoid further damage to the unit or risk of electrical shock.
Prevention Tips for Your Washer
To avoid recurring F5 E3 errors, maintain the door latch area by wiping it clean after every few cycles.
Avoid overloading the washer, as heavy loads can shift during the spin cycle and press against the door, potentially straining the locking mechanism.
Ensuring your washer is perfectly level can also prevent vibration-induced stress on the door assembly, keeping the locking components aligned and functioning smoothly for years to come.
Frequently Asked Questions (FAQ)
What does the Whirlpool F5 E3 error code mean?
The F5 E3 error code specifically indicates a door lock issue.
The machine's control board cannot confirm that the door is securely locked, which stops the cycle for safety reasons.
Can I fix the F5 E3 error by myself?
Yes, often this error can be resolved by clearing debris from the door latch or performing a hard reset (unplugging the machine).
If the latch or control board is damaged, however, professional repair or part replacement may be needed.
How do I reset my Whirlpool washer after an error?
To reset your washer, unplug the machine from the power source and leave it disconnected for 5 to 10 minutes.
This allows the system to clear temporary error logs and reset the control board.
Does the F5 E3 error mean I need a new washer?
No, it usually does not.
In most cases, it is a localized issue with the door lock assembly or a simple mechanical obstruction that can be repaired relatively inexpensively compared to the cost of a new unit.
