Few things are as frustrating as walking into your home on a hot summer day, expecting cool air, only to find your LG mini split system flashing a cryptic light code.
Modern LG mini splits are sophisticated machines designed for efficiency, but when something goes wrong, they communicate through a series of error codes, often labeled as 'CH' followed by a number.
Learning how to fix LG mini split error codes step by step can save you hundreds of dollars in service fees and get your home comfortable again quickly.

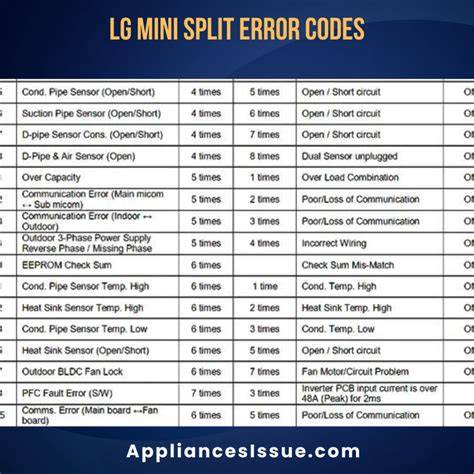

Understanding Your LG Mini Split Error Codes
Before you start taking your unit apart, it is crucial to understand what these codes actually mean.
The 'CH' on your display stands for 'Check,' signaling that the system’s internal diagnostic software has detected an anomaly.
These codes are not just random flashes; they are specific alerts pointing toward a hardware, communication, or sensor issue.
Some are simple user-fixable problems, while others require specialized tools or knowledge.
Always consult your specific model's manual first, as error codes can vary slightly between series.
However, there are universal patterns that most LG mini split owners can troubleshoot before calling a licensed HVAC technician.
Step-by-Step Troubleshooting for Common Errors
When you first notice an error code, do not panic.
Follow this logical progression to rule out the simplest issues:
1. Perform a Hard Reset
The most effective 'fix' for a digital system is often a power cycle.
Sometimes, the internal control board experiences a temporary software glitch.
Turn off the power to the unit at the circuit breaker or the disconnect switch.
Wait for at least 5 to 10 minutes to allow the capacitors to discharge fully.
Turn the power back on and see if the error persists.
If it disappears, you may have just had a power surge.
2. Inspect the Indoor Filters
Many 'airflow' related error codes are actually caused by simple neglect.
If your air filters are clogged with dust, the unit cannot move enough air, which can cause the system to shut down to prevent motor strain.
Remove the front panel, take out the filters, and wash them with warm, soapy water.
Let them dry completely and reinstall them.
A clean filter is often the difference between a working unit and a broken one.
3. Check the Outdoor Unit
If the indoor unit is showing an error, the problem might actually be outside.
Go to your outdoor condenser unit and inspect it for physical obstructions.
Check for leaves, tall grass, or debris blocking the fan or the side vents.
If the airflow is restricted, the compressor can overheat, triggering a shutdown.
Clear away any obstacles and ensure at least 24 inches of clearance around the unit.
4. Look for Communication Faults
Error codes involving communication (often labeled CH05) usually mean the indoor and outdoor units are not 'talking' to each other.
Inspect the wiring between the two units if you feel comfortable doing so.
Check for loose connections or signs of corrosion at the terminal blocks.
However, if the wiring looks intact and the error remains, there may be a faulty PCB (Printed Circuit Board) that requires professional repair.
When to Call a Professional
While DIY troubleshooting is great, safety is the priority.
You should call a certified HVAC professional if the error code persists after a reset, or if you encounter issues involving the refrigerant lines.
Signs of refrigerant leaks—such as hissing noises, ice buildup on the coils, or a lack of cooling despite the system running—require a licensed technician with the proper gauges and certification to handle refrigerants.
Attempting to repair electrical components or refrigerant systems without proper training can void your warranty, lead to severe injury, or cause permanent damage to your expensive investment.
Routine Maintenance to Prevent Future Errors
The best way to fix an error code is to prevent it from ever appearing.
Establishing a routine maintenance schedule is the most effective strategy.
Aim to clean your indoor air filters every month during the cooling season.
Once a year, schedule a professional tune-up where a technician can deep-clean the coils, check the electrical connections, and verify that the refrigerant levels are correct.
By treating your LG mini split with consistent care, you extend its lifespan and ensure that it keeps running efficiently year after year.
Frequently Asked Questions (FAQ)
How do I reset my LG mini split unit?
The most effective way to reset the unit is to turn off the power at the circuit breaker or the disconnect switch for at least 5 to 10 minutes.
This allows the internal control board to fully discharge and reset its memory.
What does the CH05 error code mean on an LG mini split?
The CH05 error usually indicates a communication error between the indoor and outdoor units.
This is often caused by loose wiring or a faulty printed circuit board (PCB) connecting the two units.
When should I stop troubleshooting and call a professional?
You should stop and call a professional if you notice signs of refrigerant leaks (like ice on the coils), if you smell electrical burning, or if the error persists after a full power reset.
Refrigerant systems are high-pressure and require specialized certification to repair.
Can dirty filters cause error codes?
Yes, absolutely.
Dirty or clogged air filters restrict airflow through the evaporator coil.
This can cause the system to overheat or trigger sensors that detect insufficient airflow, leading to error codes and reduced efficiency.
